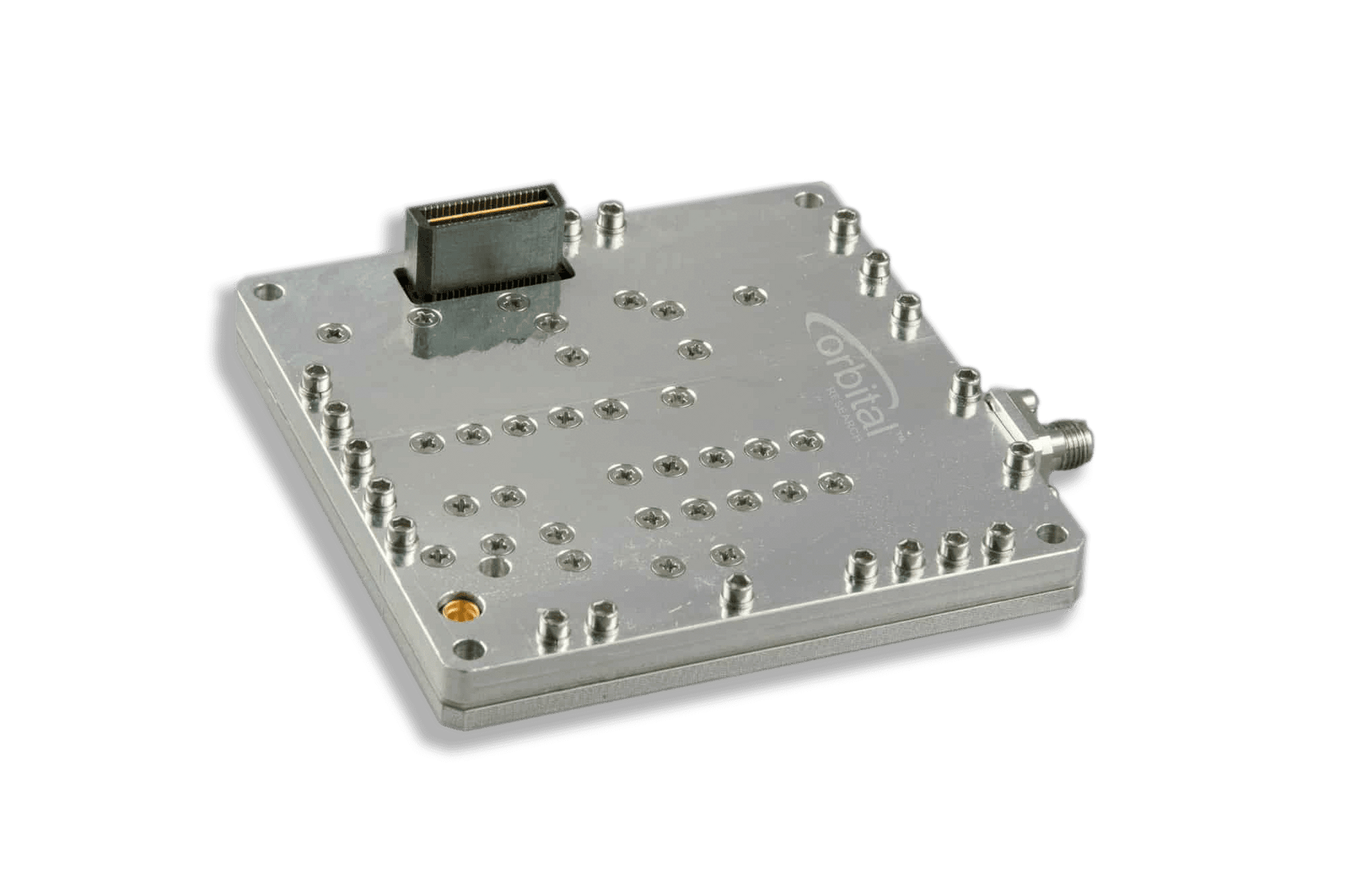

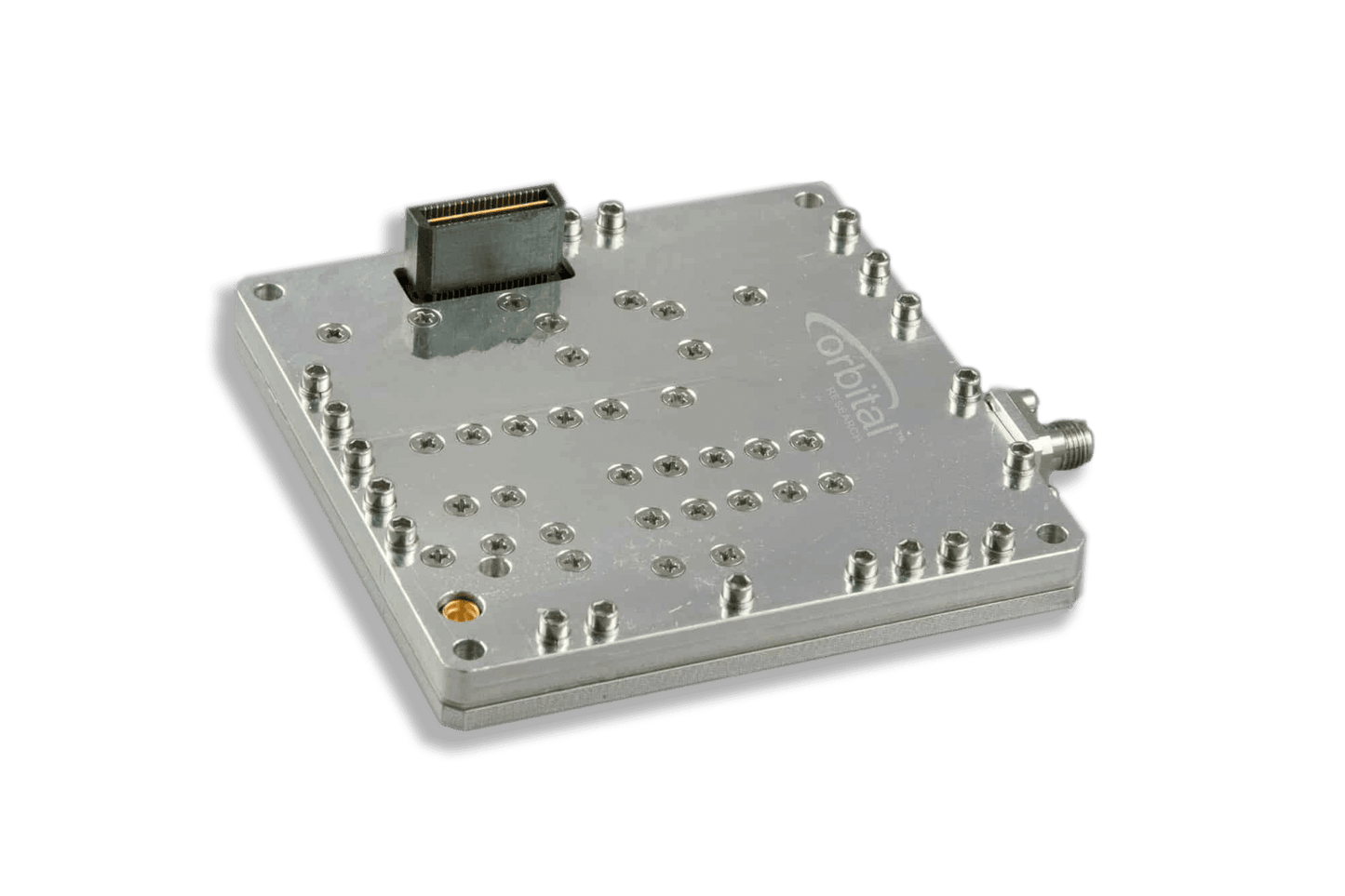

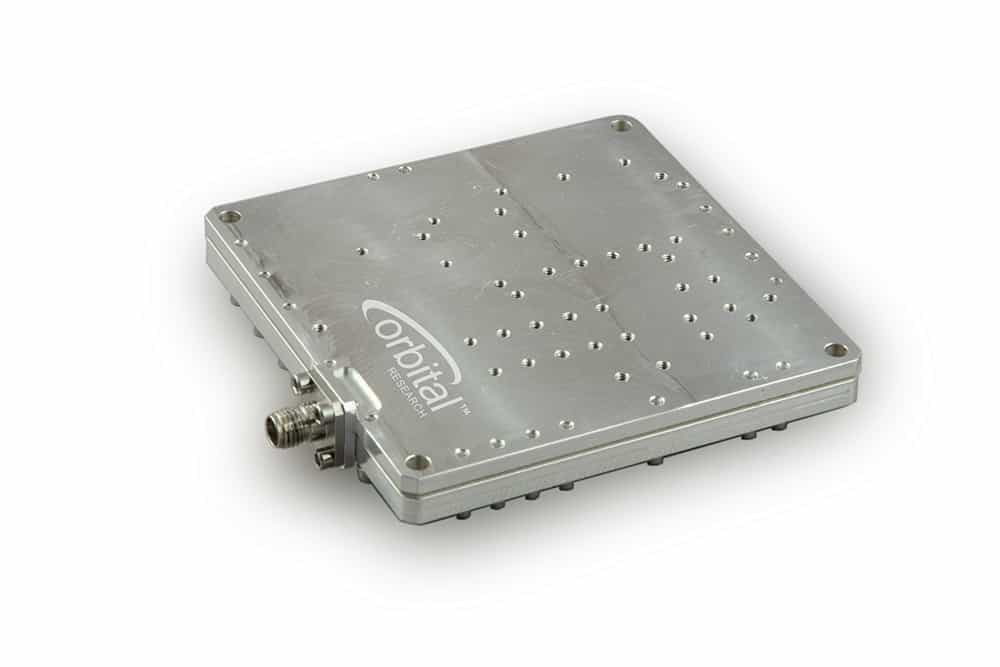

The 26 GHz space-rated small satellite receiver from Orbital Research delivers high performance for big-bandwidth LEO missions and earth observation (EO) systems. This agile frequency converter is a perfect front-end for software defined radios (SDRs) and on-board processors in the K-band SmallSat market.
Our SmallSat receiver can be customized to suit your form factor. The device can be used for LEO, MEO, sun synchronous or polar orbit missions and allows for in-orbit changes to mission profiles.
Features:
Low noise figure, ultra-low phase noise, phase locked frequency synthesized local oscillator (LO), DVB-S2X compliance, CubeSat form factor 4×4 inches
K-bands covered:
22.55 to 23.15 GHz – Earth to Space 24.65 to 24.75 GHz – Earth to Space, Inter-Satellite 24.75 to 25.25 GHz – Earth to Space 25.25 to 25.50 GHz – Inter-Satellite 25.50 to 27.00 GHz – EO Space to Earth, Inter-Satellite
Applications
Space-to-space crosslinks, earth-to-space telemetry, tracking and control (TT&C), earth-to-space broadband communication uplinks/downlinks
