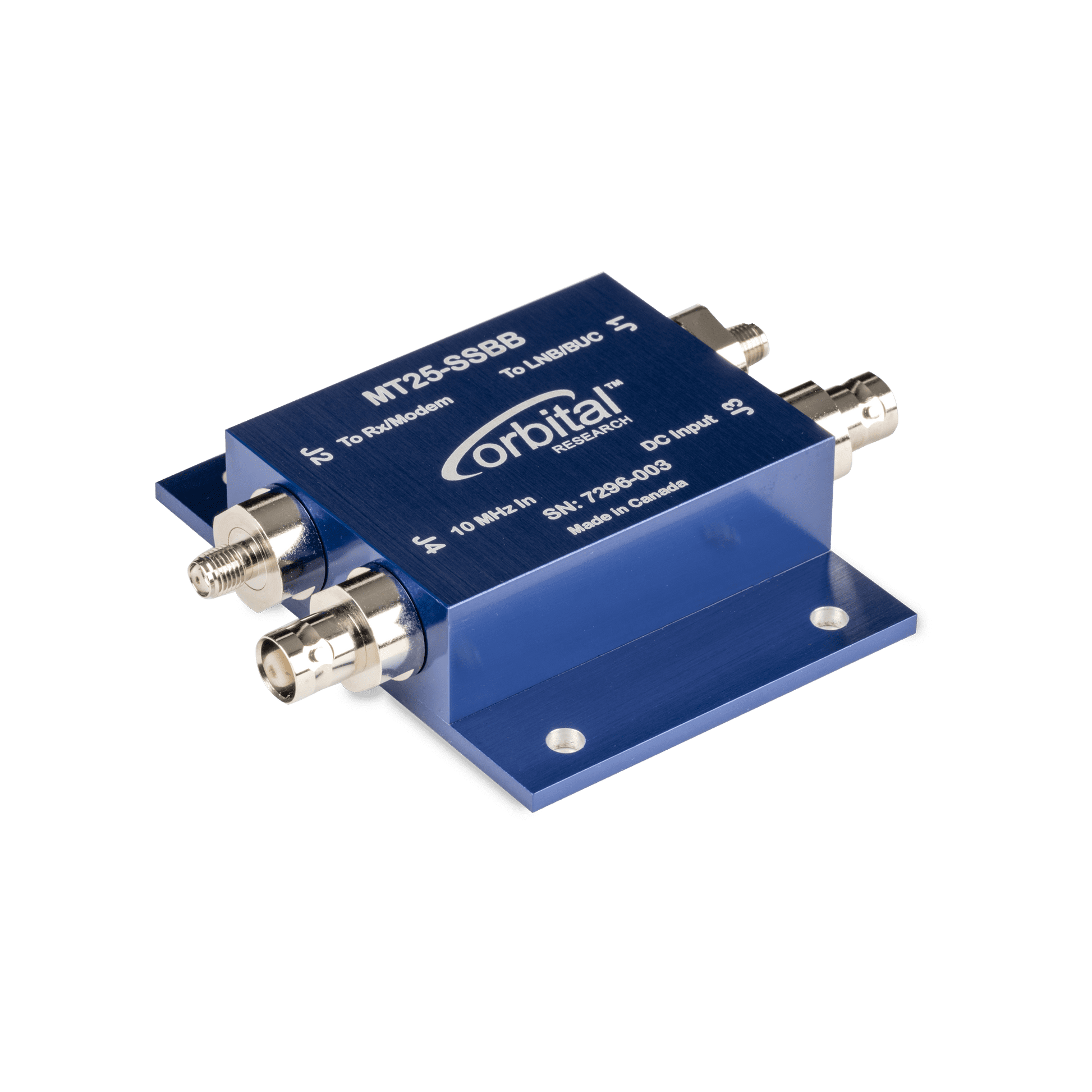

The Orbital Research “Mux Tee” (MT-25/40) is a premium bias tee multiplexer that does much more than insert DC current: it multiplexes a 10 MHz reference signal onto the L-band signal. And because it is a passive device that requires no power, it can work in reverse and extract a DC signal and/or demultiplex a 10 MHz reference from your modem.
The Mux Tee is 6 devices in 1:
- Bias tee
- 10 MHz multiplexer
- Both a bias tee and 10 MHz mux
- DC extractor
- 10 MHz demultiplexer
- Both a DC extractor and 10 MHz demux
The Mux-Tee filters the incoming IF signal and provides an effective block to any unwanted DC or 10 MHz that may be coming from the modem – delivering exceptional return loss and very low thru loss. In addition, the external DC and 10 MHz inserted signals are filtered to avoid any interference with the wanted IF signal.
