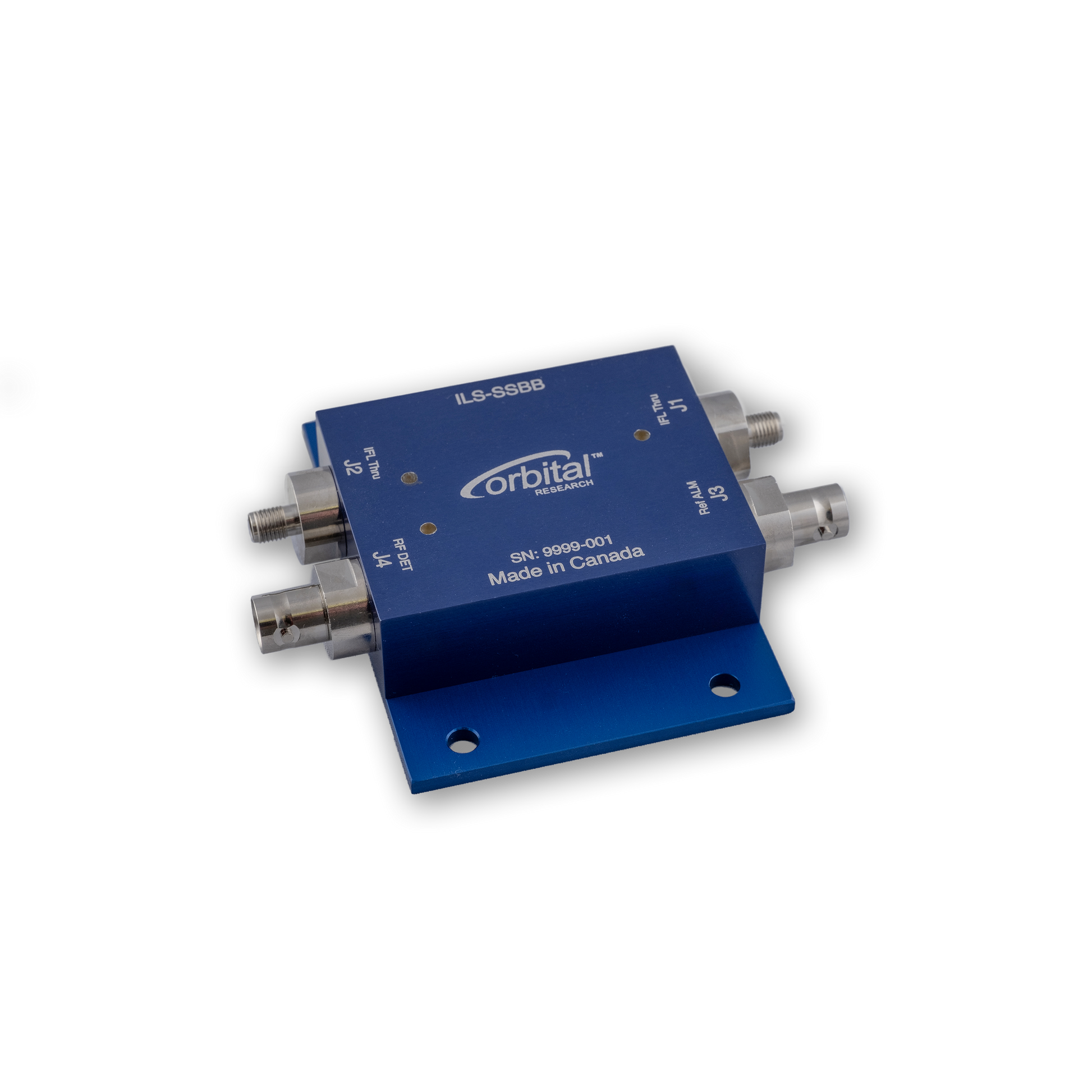

Inline RF and DC Sensor

The Orbital Research RF, DC, and 10 MHz Power Sensor is a compact, non-intrusive device that detects RF signal presence, reference signals, and DC power in LNB and BUC signal paths.

Installed directly in the RF line, it operates transparently with live traffic, providing quick, at-a-glance confirmation during deployment, testing, and maintenance. Powered from the IF line, it requires no external power, ideal for field, remote installations and bench or laboratory use.

Features:

• Inline sensor with non-intrusive RF pass-through
• LED indication of RF signal presence
• Wideband RF pass-through
• 900 MHz to 3 GHz
• 10 MHz reference detection
• DC power presence detection
• IF line powered (no external power required)
• Bi-directional operation
• IP67-rated anodized enclosure

Applications:

• Signal presence verification for LNBs and BUCs
• Terminal deployment and troubleshooting
• QA testing of LNBs and front-end devices
• Lab, bench, and field validation
• Use in receive and transmit signal paths

Download the brochure
