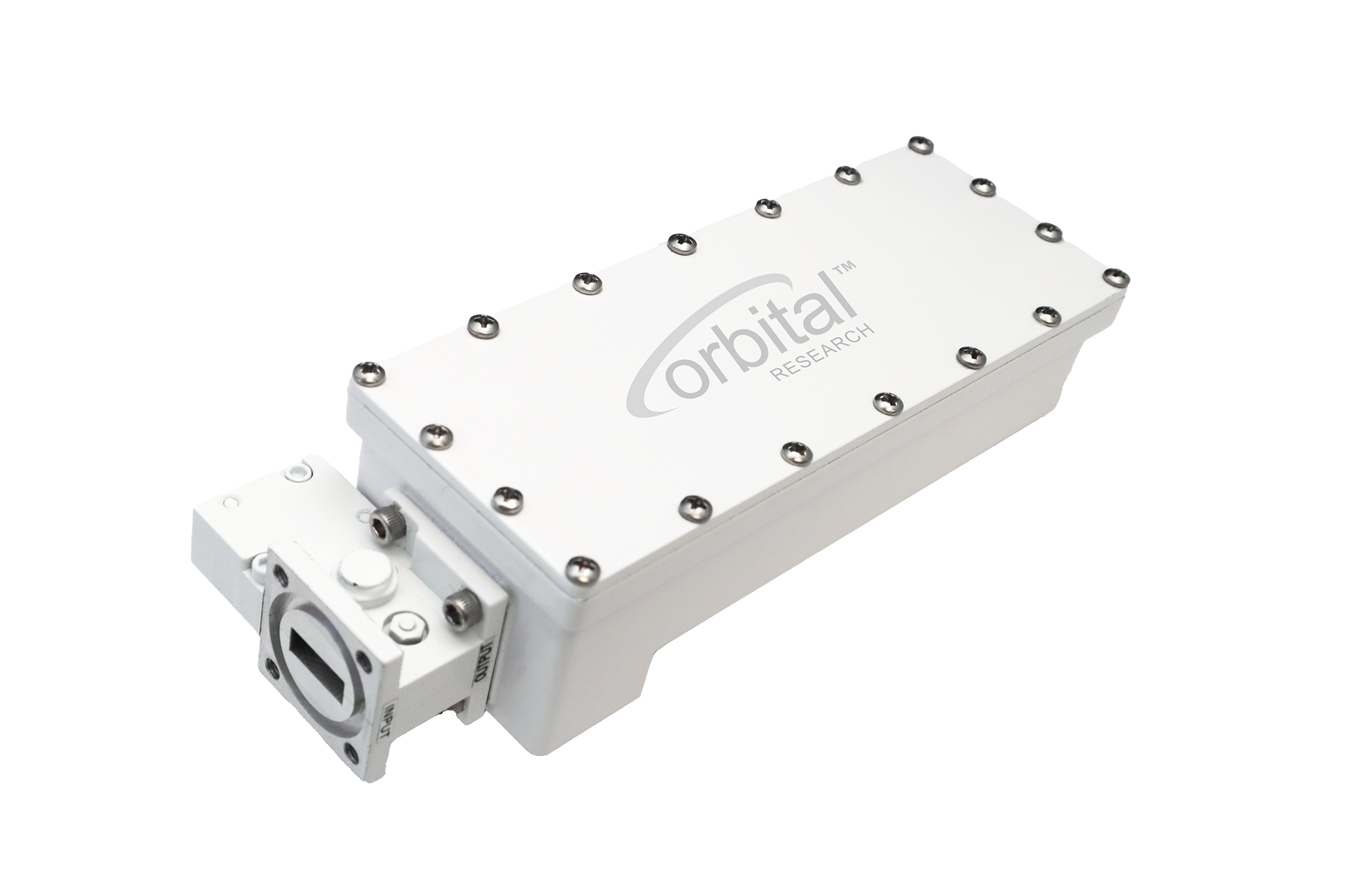

Optimized for high-throughput Earth observation missions, this K-band LNA delivers wide instantaneous bandwidth and low noise performance for remote sensing and EO ground terminals. Its precision-tuned front end maximizes link margin and data integrity during short satellite passes while supporting advanced modulation schemes.
Features:
- 1.5 GHz wideband coverage from 25.5 to 27 GHz
- High quality signal amplification
- Low noise temperature: 170 K typical, 225K max
- High gain linearity (50 dB) for DVB-S2X links
- Options for high temperatures and temperature compensated gain
- GaAs pHEMT MMIC design for stable, repeatable performance
- Rugged, weatherproof enclosure with optional monitoring
Applications:
- EO ground stations for for very high bandwidth satellites such as Orbital Sidekick (OSK), GHOSt and next-generation ESA missions
- Remote sensing downlinks requiring wide instantaneous bandwidth
- TT&C and data acquisition for LEO/MEO EO missions
