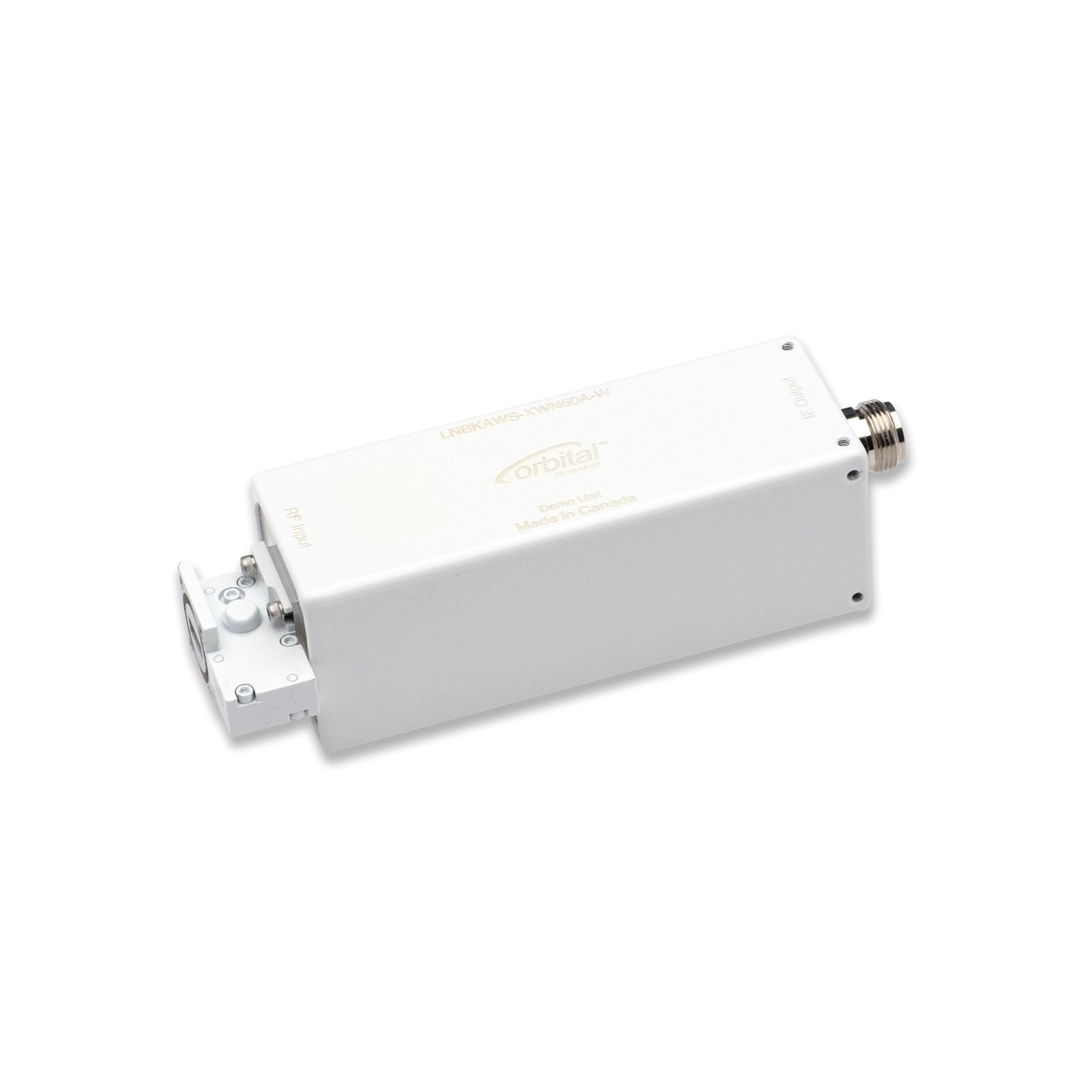

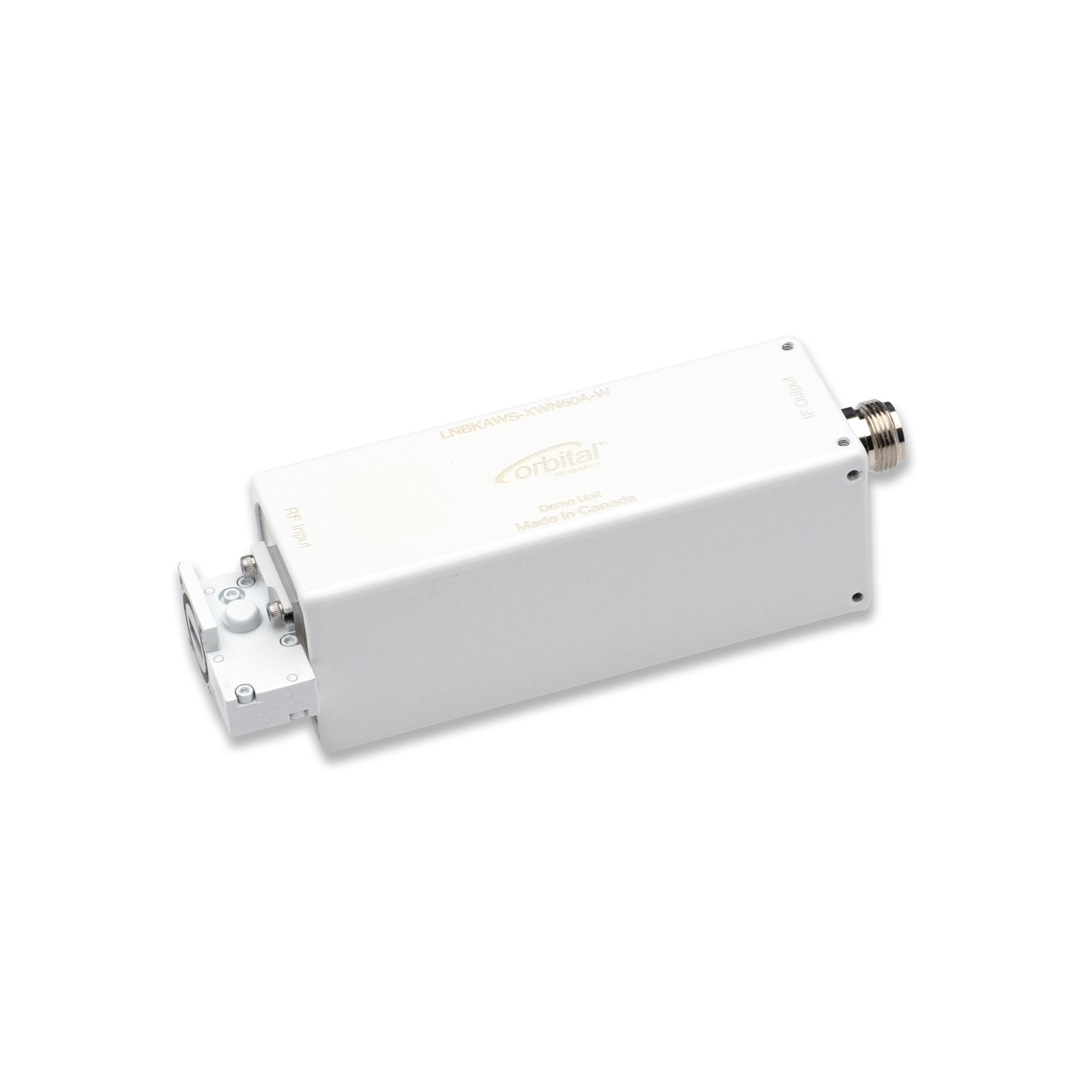

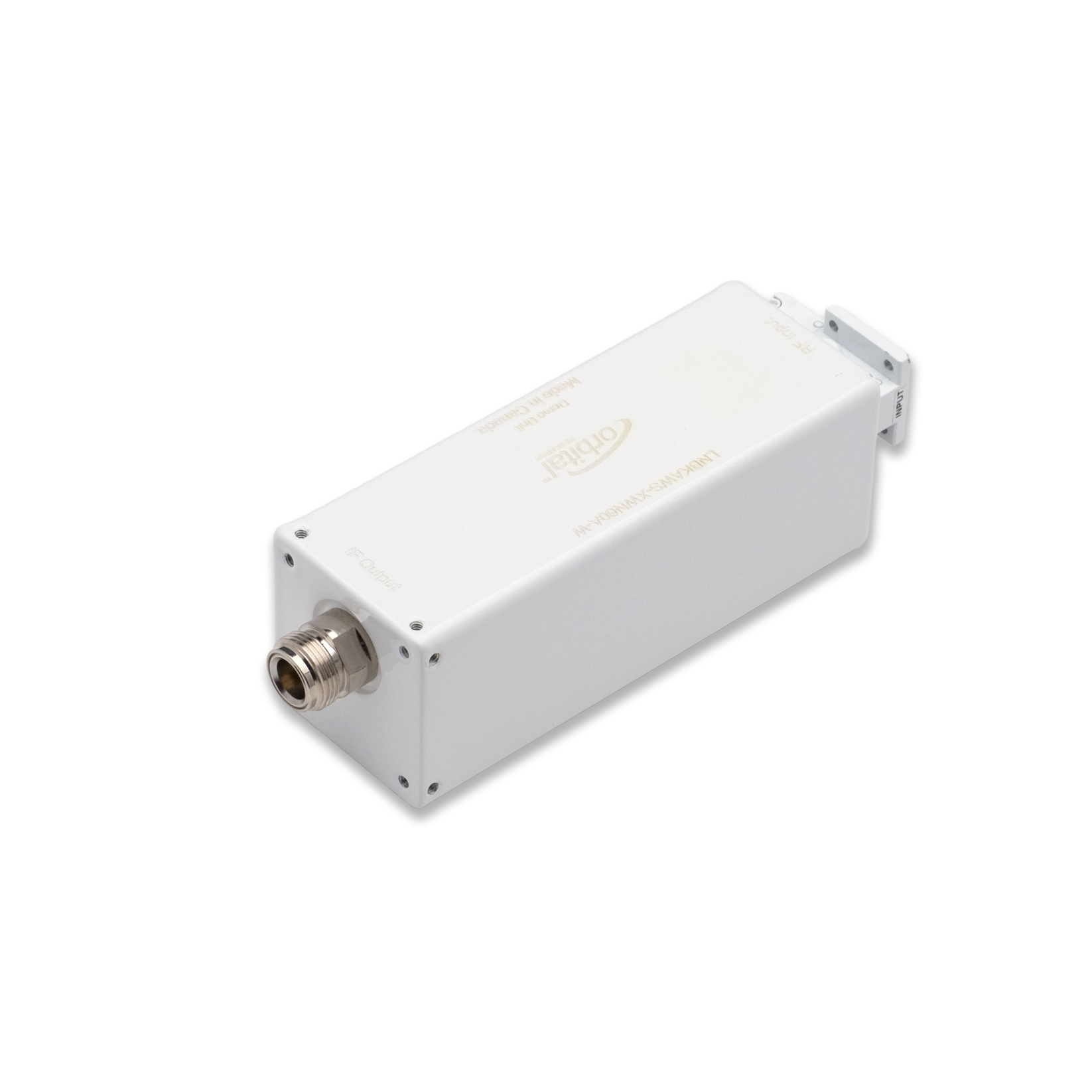

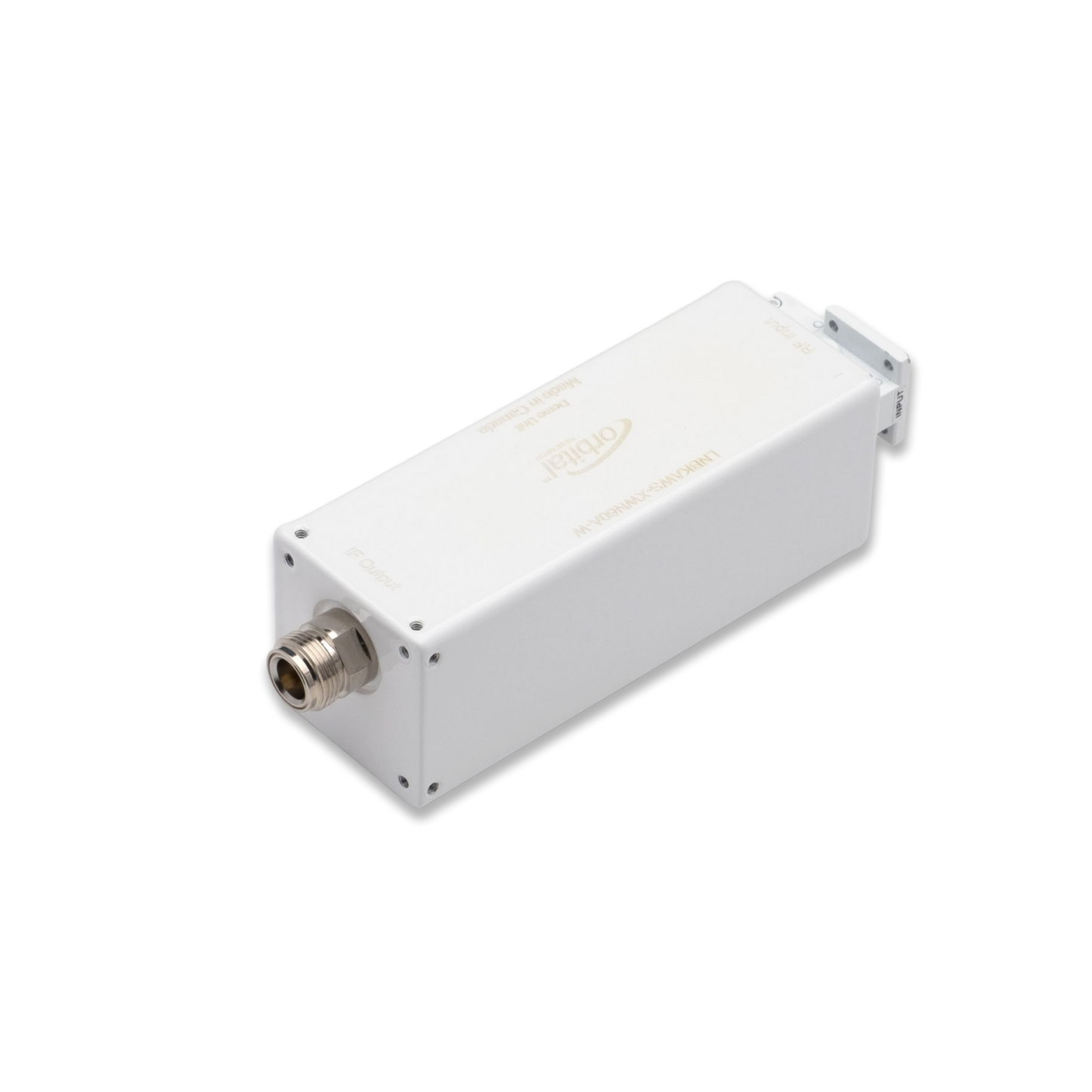

This satellite converter is a world first: a Ka-band LNB with Ethernet monitor and control access. Optimized for high-throughput Ka-band networks, this LNB delivers wide instantaneous bandwidth for mobility, ISR, and broadband data applications. Its precision-engineered front end and ultra-low noise figure help maximize G/T performance, supporting high-rate downlinks and resilient connectivity across dynamic satellite beams. The unit offers multi-LO support, local push-button control, and optional remote Monitor & Control (M and C) via Ethernet.
Features:
Push Button Control: Button and LED indicators provide local manual control and visual indication at the antenna with the ability to switch between manual control and automatic (voltage) control.
Switchable band filters for superior image rejection and interference control
Very low phase noise and DVB-S2X compliance for maximum data throughput
Fine digital step attenuation (0.25 dB steps) for optimal power alignment
IP67 aluminum sealed enclosure with high RF isolation
Custom LO frequencies and filter options with accelerated lead times
